產品特點：

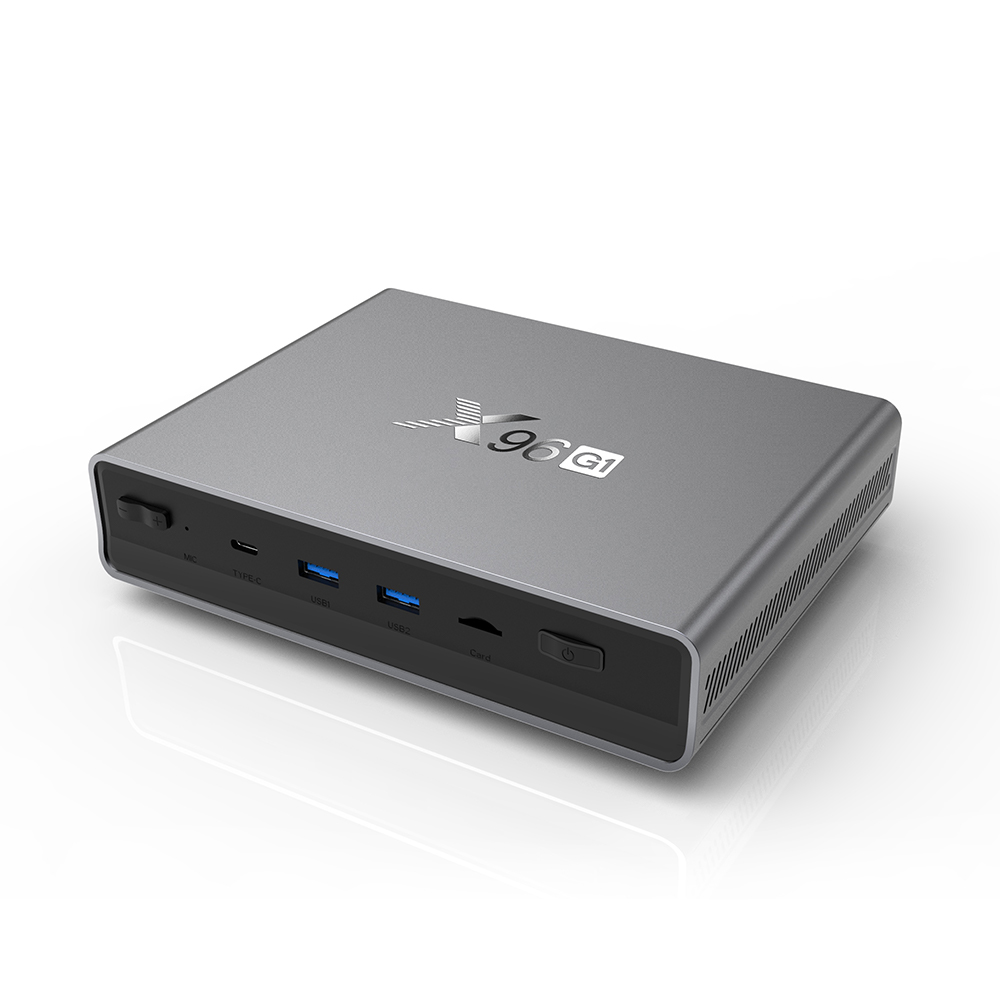

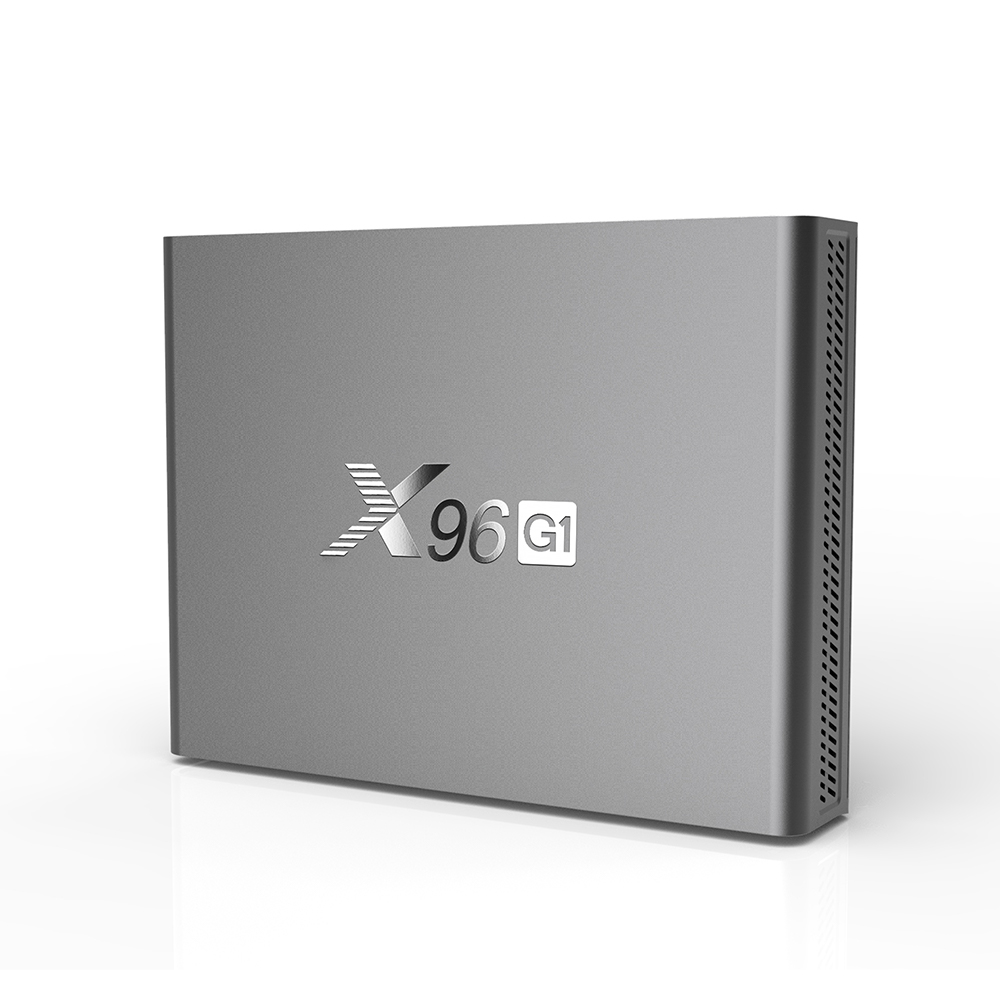

X96 G1(N4100) |
||
| Platform | Gemini Lake | |
| CPU | Processor Type |
Intel? Gemini Lake N4100: up to 2.4GHz Quad Core (4C/4T) BGA 24mm x 25mm x 1.44mm |
| Process | 14nm | |
| L2 Cache | Supports Intel? Burst Technology Supports 4MB of L2 Cache | |
| Memory | Technology | LPDDR4 |
| Memory | 4GB | |
| Display | LCD Type | N/A |
| touch panel | N/A | |
| Communication Port | Wireless LAN/Bluetooth | Intel Stone Peak AC3165 802.11 a/b/g/n/ac 1x1 MIMO and Bluetooth 4.0 Combo Module |
| Card Reader | Controller | Realtek RTS5170-GR |
| Card Reader | Micro SD | |

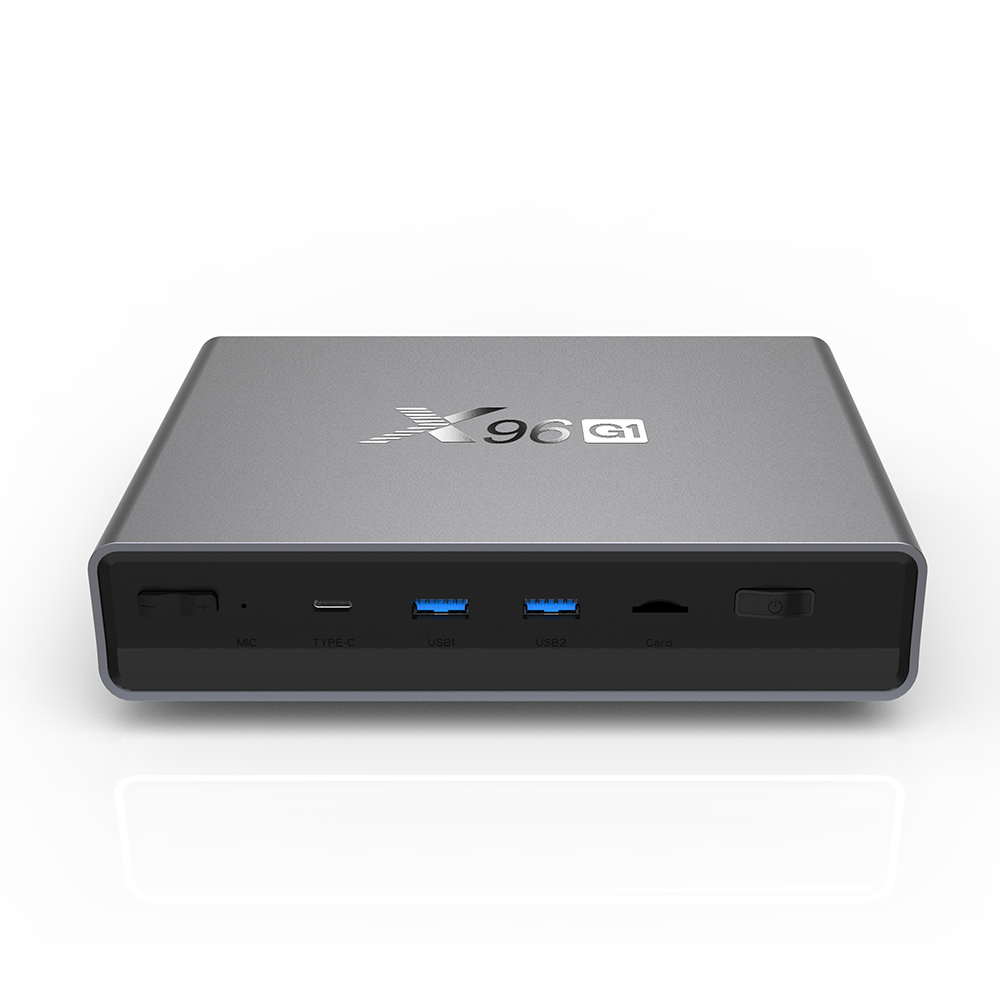

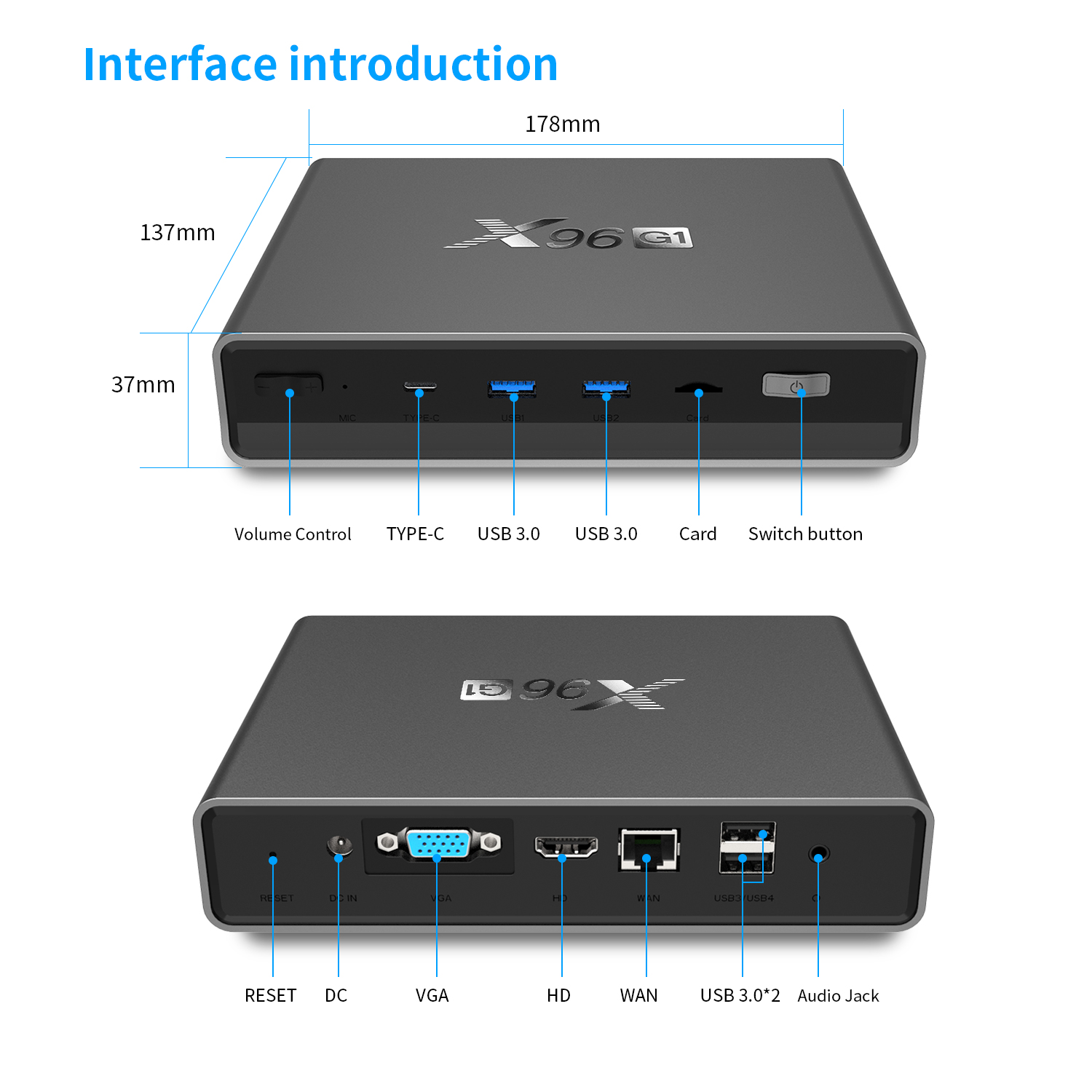

| I/O | DC-IN Jack | x1 |
| USB 2.0(Type A) | x2 | |
| USB 3.0(Type A) | x2 | |
| Type C | x1 | |
| Giga LAN(RJ45) | x1 | |
| VGA | x1 | |
| HDMI 2.0a | x1 | |
| Audio | Audio Jack | x1 |
| Storage | eMMC4.5 | 32GB |
| SATA HDD(Option) | 1TB/2TB | |
| M.2 SSD(Option)--2242 and 2280 | 128G/256G | |
| Hot Keys | Power Button | x1 |
| Reset Button | x1 | |
| RF 2.4G Remote (Option) | x1 | |
| Power | AC adapter | AC 100~240V, 50/60Hz,12V/2A |
| Physical Characteristics | Dimension(L x W x H) | 170.5*134*35mm |
| Weight(g) | TBD | |
| Software | Support OS | Window10 |
| WHQL/CTS | ||
| CPU | Processor Type |
Intel? Gemini Lake N4100: up to 2.5GHz Dual Core (2C/2T) BGA 24mm x 25mm x 1.44mm |
| Memory | Technology |
LPDDR4 |
| Memory |
4GB/8GB |
|
| Communication Port | Wireless LAN/Bluetooth |
Intel Stone Peak AC3165 802.11 a/b/g/n/ac 1x1 MIMO and BT 4.0 Combo Module |
| storage |
M.2 SSD(Option)--2242 and 2280 |
128G/256G |
|
SATA HDD(Option) |
1TB/2TB |
|
| eMMC4.5 | 32G/64G | |
| Power | AC adapter | AC 100~240V, 50/60Hz,12V/2A |
| Software | Support OS | Windows 10 home |
| WHQL/CTS |
